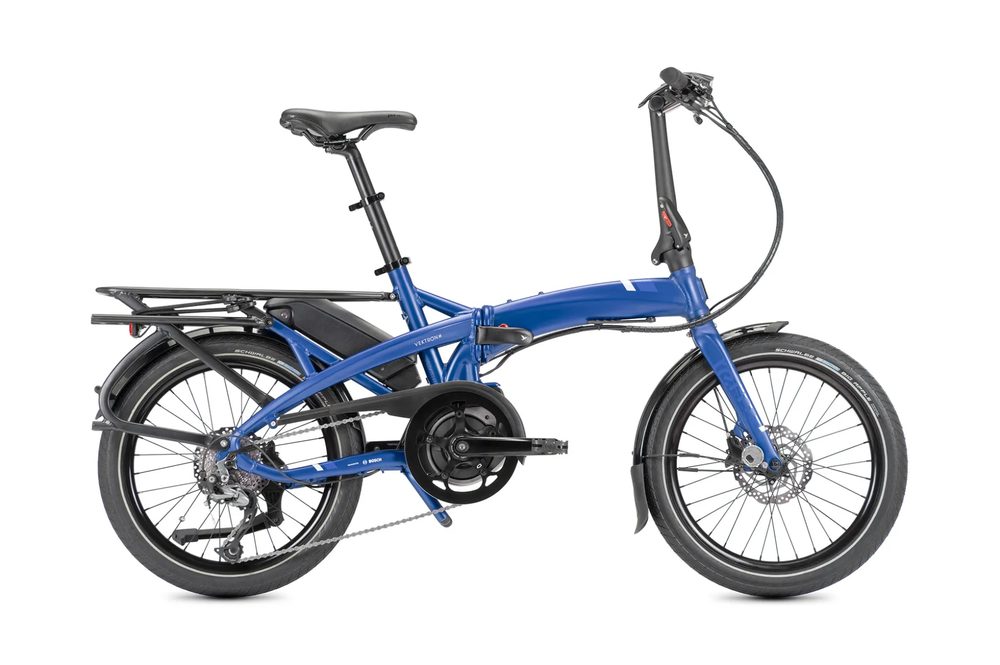

Vektron Q9: Folding E-Bike for Commuting & Travel
The Accelerator
What makes it special?
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Highlights
- New colors and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque
- Hydraulic disc brakes for all-weather stopping power
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
Technology
Andros Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Shimano® Hydraulic Disc Brakes
All-weather stopping power
Shimano hydraulic disc brakes deliver powerful stopping power in all weather conditions with the touch of a finger.
Shimano® Alivio Shadow Derailleur
GEARED FOR THE CITY
For most cities, the resilient 9-speed Alivio Shadow derailleur is all you really need—with the added benefit of keeping everything tucked away for extra protection, which comes in handy when you need to transport your folded bike.
Bosch® Active Line Plus
CAREFREE RIDING
With a little more torque for smoother acceleration, the Bosch Active Line Plus drive unit can take you up to 25 km per hour (20 mph in the U.S.) and operates dependably—day in and day out. The new generation of the Active Line Plus is also 20% lighter and 25% smaller than the previous one, maintaining its excellent performance and low-levels of vibration while delivering an even quieter ride with less pedal resistance.
Bosch® PowerPack Battery
Feather-light powerhouse
This impressive high-energy, high-power cell clips on and off your bike. The best-in-class design charges fast—from zero—in only 2.5 to 3.5 hours, and lets you ride longer and further between charges. You’ll be impressed by its long lifespan, light weight, and ease of charging. PowerPacks are available in 300/400/500 Wh variants, so you can forget about range anxiety.
Bosch Purion Control Panel
COMPACT CONTROL CENTER
The on-board computer lets you switch between five different riding modes, and feeds you handy information like speed, battery level, and distance. It optimizes shifting actions and constantly updates you on the remaining range, just like a typical German car. Best of all, it’s now more compact and robust than ever.
Atlas V Rack
AN ULTRA-ROBUST RACK WITH GSDna
With structural cues from the heavy-duty Tern GSD, the new Atlas V Rack has been massively strengthened and increased in size, with a load capacity of 27 kg (59 lb). This reduces flex for more secure handling when the bike is loaded. Riding with your little one? Add a Thule Yepp Maxi or Dash® RM child seat—no adapters needed. The Atlas V Rack is also KLICKfix-compatible, and can hold panniers of different sizes—including the Bucketload Pannier, which was designed to fit every configuration of the Vektron.
Gallery
Click any image for full size · hover to pause
Specifications
General Info
- Generation
- Gen 3
- Color(s)
- Satin Blue
- Speeds
- 1 x 9
- Weight
- 21.9 kg (48.3 lb)
- Gear Inches
- 33" - 97" (2.65 - 7.72 m)
- Frame Sizes
- One size
- Folding Size
- 42 × 86 × 68.5 cm (16.5 × 33.9 × 27 in)
- Folding Time
- 10 sec
- Distance: Seatpost to Handlebar
- 62 - 69 cm (24.4 - 27.2 in)
- Distance: Saddle to Pedal
- 67 - 110 cm (26.4 - 43.3 in)
- Suggested Rider Height
- 147 - 195 cm (57.9 - 76.8 in)
- Max Gross Vehicle Weight
- 125 kg (275.6 lb)
- Max Rider Weight
- 105 kg (231.5 lb)
Frame
- Frame
- Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
- Fork
- Tern Tarsus, 6061-Al, hydroformed
Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Headset
- Tern Flux, cartridge bearings, Physis integrated
- Handlebar
- Flat bar, 6061-AL, Tern Andros adapted
- Grips/Bar Tape
- Velo ergonomic, lock-on
- Saddle
- Tern Porter, patented GripPad design
- Seatpost
- Tern Telescope, 34.9/30.9 mm, 2014-AL
- Seatpost Clamp
- Tern Collar, 6061-AL, 2pc
Brakes
- Front Brake
- Shimano, hydraulic disc
- Rear Brake
- Shimano, hydraulic disc
- Brake Levers
- Shimano, hydraulic disc
- Brake Cable & Housing
- Shimano, hydraulic disc
Wheels
- Front Hub
- Shimano disc
- Rear Hub
- Shimano disc
- Spokes & Nipples
- Stainless steel
- Rims
- Kinetix Comp, for disc
- Tyres
- Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
- Shifter
- Shimano Alivio, 1 x 9 spd, trigger
- Rear Derailleur
- Shimano Alivio Shadow
- Crankset
- Vektron custom, forged 6061-AL crankarm
- Cassette/Freewheel
- Shimano 11-32T, 9 spd
- Bottom Bracket
- Motor integrated
- Chain
- 9 spd, DHT for eBike, GST corrosion resistant coating
- Pedals
- MKS EZY
- Shifter Cable & Housing
- Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
- Motor
- Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery
- Bosch PowerPack 400 Wh
- Display
- Bosch Purion, 4 mode selectable, walk assist
- Range
- 400 Wh: 55 -110 km (35-70 mi)
- Charger
- 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
- Bell
- Aluminum
- Chainguard
- SKS Chainblade
- Kickstand
- URSUS, rear mount
- Clip System
- Magnetix 3.0
- Luggage Socket
- Yes
- Front Light
- Tern Valo Direct, 190 lumens
- Rear Light
- Herrmans H-Trace, for eBike
- Fenders
- SplashGuard, stainless hardware
- Rack
- Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
