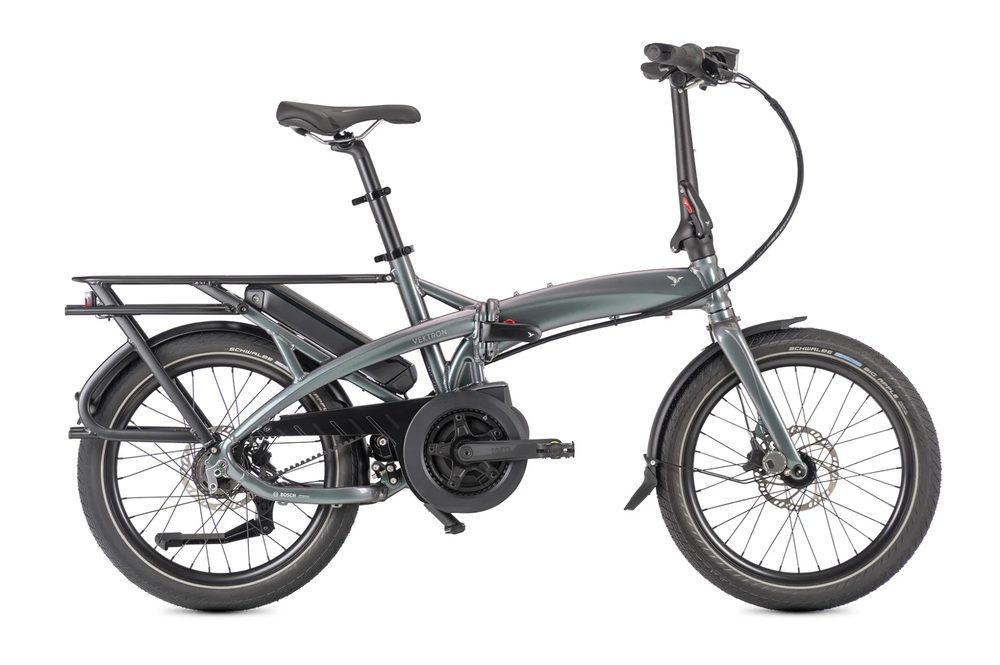

Vektron P5i: Smart Folding eBike With Belt Drive
Ride It, Fold It, Go Further
What makes it a P5i?
- Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support
- Intuvia 100 display and LED Remote offer clear info and easy control at your thumb
- PowerPack 400 Wh battery lets you ride up to 87 km (54 mi) on a single charge
- Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter offers smooth, effortless shifting across changing terrain
- Silent, grease-free, and low-maintenance Gates Belt Drive
Vektron highlights
- Bosch Smart System delivers smart bike features like eBike Lock, ride customization, over-the-air updates, and navigation
- Add the optional ConnectModule to further enhance your experience with advanced functions such as Smart Alarm and GPS tracking
- Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes
- Folds down compact in 10 seconds to fit in cars, trains, and closets
- Stands upright and rolls when folded—easy to move, easy to store
- Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
- Hydraulic disc brakes for all-weather stopping power
- Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
- UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards
Technology
OCL+ Frame Joint
Robust folding technology
A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.
Physis 3D Handlepost
The new benchmark
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.
Andros Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Magura® MT4 Hydraulic Disc Brakes
FREINS PUISSANTS
Hydraulic disc brakes give you excellent stopping power, working effortlessly even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. With mineral oil-based brake fluid that is gentler on the environment than most hydraulic brake fluids, and Magura's Easy Bleed Technology, your Vektron is ready for a safer ride.
Gallery
Click any image for full size · hover to pause
Specifications
General Info
- Generation
- Gen 4
- Color(s)
- Urban Verdant
- Speeds
- 1 x 5
- Weight
- 23.6 kg (52 lb)
- Gear Inches
- 34" - 90" (2.75 - 7.22 m)
- Frame Sizes
- One size
- Folding Size
- 42 × 85 × 69 cm (16.5 × 33.5 × 27.2 in)
- Folding Time
- 10 sec
- Distance: Seatpost to Handlebar
- 62 - 69 cm (24.4 - 27.2 in)
- Distance: Saddle to Pedal
- 67 - 110 cm (26.4 - 43.3 in)
- Suggested Rider Height
- 147 - 195 cm (57.9 - 76.8 in)
- Max Gross Vehicle Weight
- 125 kg (275.6 lb)
- Max Rider Weight
- 105 kg (231.5 lb)
Frame
- Frame
- Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
- Fork
- Tern Tarsus, 6061-Al, hydroformed
Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Headset
- Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar
- Tern Sweep, 6061-AL, Tern Andros adapted
- Grips/Bar Tape
- Ergon
- Saddle
- Tern Upright by Velo
- Seatpost
- Tern Telescope, 34.9/30.9 mm
- Seatpost Clamp
- Tern Collar
Brakes
- Front Brake
- Magura MT4, hydraulic disc
- Rear Brake
- Magura MT4, hydraulic disc
- Brake Levers
- Magura, hydraulic disc
- Brake Cable & Housing
- Magura, hydraulic disc
Wheels
- Front Hub
- Disc, aluminum
- Rear Hub
- Shimano Nexus 5
- Spokes & Nipples
- Stainless steel
- Rims
- Kinetix Comp, for disc
- Tyres
- Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
- Shifter
- Shimano Nexus, 5 spd
- Crankset
- Tern custom, Gates CDX CNC machined beltring
- Cassette/Freewheel
- Gates CDX, precision CNC machined cog
- Chain
- Gates Carbon Drive CDC belt
- Pedals
- MKS EZY
- Shifter Cable & Housing
- Shimano
E-System
- Motor
- Bosch Performance, max speed 25 kph (EU)
- Battery
- Bosch PowerPack
- Display
- Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
- Range
- 400 Wh: 40-87 km (25-54 mi)
- Charger
- 100-240V, 2A
Bells & Whistles
- Chainguard
- Tern Custom, full chain cover
- Kickstand
- URSUS, rear mount
- Clip System
- Magnetix 3.0
- Luggage Socket
- Yes
- Front Light
- Tern Valo Direct, 190 lumens
- Rear Light
- Herrmans
- Fenders
- SplashGuard, stainless hardware
- Rack
- Atlas V Rack, integrated 8 point mounting, 27 kg capacity
Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
