Riese & Muller Load5 Pinion
Space for everything that matters.
The new Load5 pinion brings the Pinion MGU 1.12 to the Load5 60 and Load5 75 platform, adding a premium, highly integrated and low-maintenance drive option to one of Riese & Muller's most capable cargo bikes.
For riders carrying children, cargo or daily work loads, the Load5 pinion is designed to combine stable handling, full-suspension comfort and confident braking with a cleaner, belt-driven set-up that is especially appealing for heavy everyday use.
- Available on both the Load5 60 and Load5 75 platform lengths
- Pinion MGU E1.12 with CompactCore 800 battery
- Optional second FIT CompactCore 800 for up to 1,600 Wh total capacity
- Available as both pinion and pinion HS
Pre-Order Open
Available to Pre-Order
The new Load5 pinion is now available to pre-order.
Expected availability: December 2026
Register your Interest
If your email app does not open automatically, you can also contact us directly at info@e-bikebarn.com.
Choose Your Platform
Load5 60 Pinion
The more compact Load5 platform for riders who want cargo-bike practicality in a shorter overall footprint.
Load5 75 Pinion
The longer platform for riders needing more cargo-box length, more load flexibility and more carrying space day to day.
A Closer Look

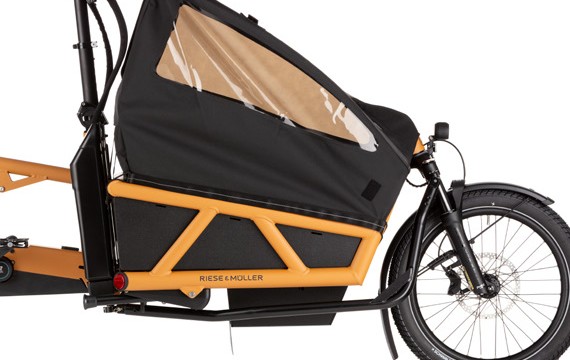

Family-ready front box
The Load5 pinion can be set up for family transport without losing the stable, controlled ride feel of the Load platform.

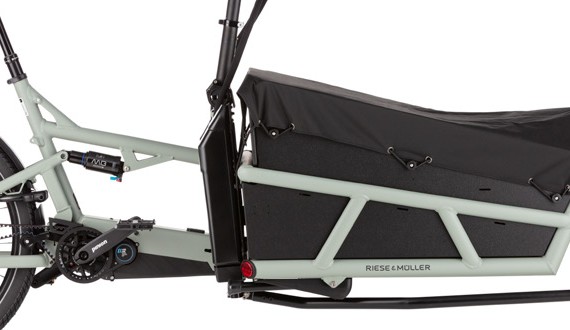

Cargo-focused loading space
Long box options and practical accessory combinations make the bike just as useful for work runs as for home life.

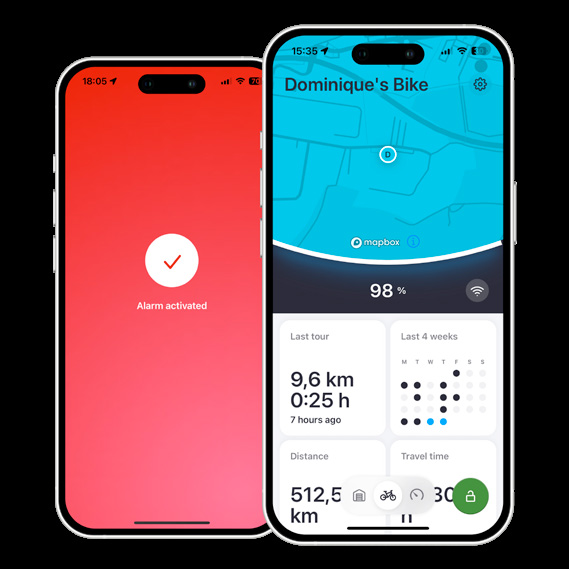

RX Connect as standard
The Load5 is part of the MY2027 range with RX Chip integration as standard, adding connected services and theft-related features.
Why The Load5 Pinion Stands Out
- Pinion integration: the Pinion MGU 1.12 combines motor and gearbox in one unit for a very tidy, premium cargo-bike set-up.
- Low maintenance: Gates CDX belt drive and enclosed Pinion drivetrain are especially attractive for riders doing high mileage or year-round use.
- More energy on demand: a second FIT CompactCore 800 can be configured, taking total battery capacity up to 1,600 Wh.
- Full-suspension cargo comfort: SR Suntour Mobie34 CGO front suspension and X-Fusion Glyde R rear suspension help keep the bike settled under load.
- Fast option available: the pinion HS brings the same integrated Pinion concept to a speed-pedelec cargo platform aimed at brisk commuting routes.
Built For Frequent Cargo Use
The brochure positions the new Load5 pinion as a particularly strong option for riders who are out and about a lot and want a high-quality drive solution with reduced maintenance overhead. That makes it especially appealing for heavy daily transport, mixed family and business use, and riders who value cleaner drivetrain operation.
The Load5 pinion also keeps the strengths that make the Load platform so versatile: stable handling under load, controlled braking, confident ride quality and the ability to configure the bike around different cargo tasks.
Drive, Controls And Battery
On the standard pinion model, the specification centres on the Pinion MGU E1.12, FIT Remote Basic and FIT Comfort Display, paired with an 800 Wh CompactCore battery. The HS version steps up to the Pinion MGU E1.12 S for riders wanting a faster commuting set-up.
Both versions keep the same core pitch: integrated drive, precise shifting, strong battery capacity and a premium cargo-bike feel that suits heavier transport and regular use.
Model Range
Load5 60 Pinion
Shorter Load5 platform with Pinion MGU E1.12, 800 Wh CompactCore battery, FIT Remote Basic and FIT Comfort Display.
Load5 75 Pinion
Longer platform length with the same Pinion MGU E1.12 drive concept for riders needing extra loading space.
Load5 60 Pinion HS
Shorter HS platform using Pinion MGU E1.12 S and 45 km/h lighting specification for fast daily routes.
Load5 75 Pinion HS
Longer HS cargo-bike format for riders who want the integrated Pinion concept with more carrying space and faster assisted travel.
Key Equipment Details

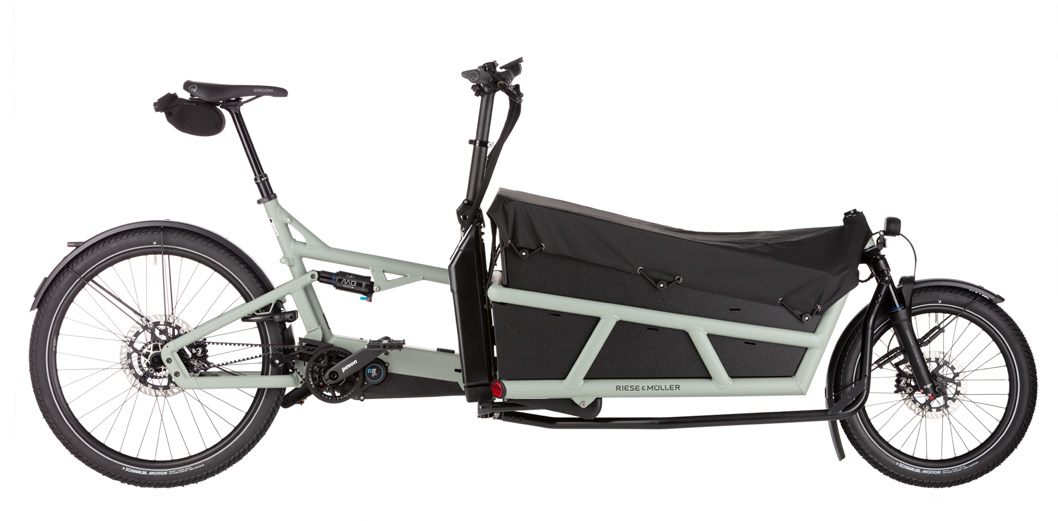

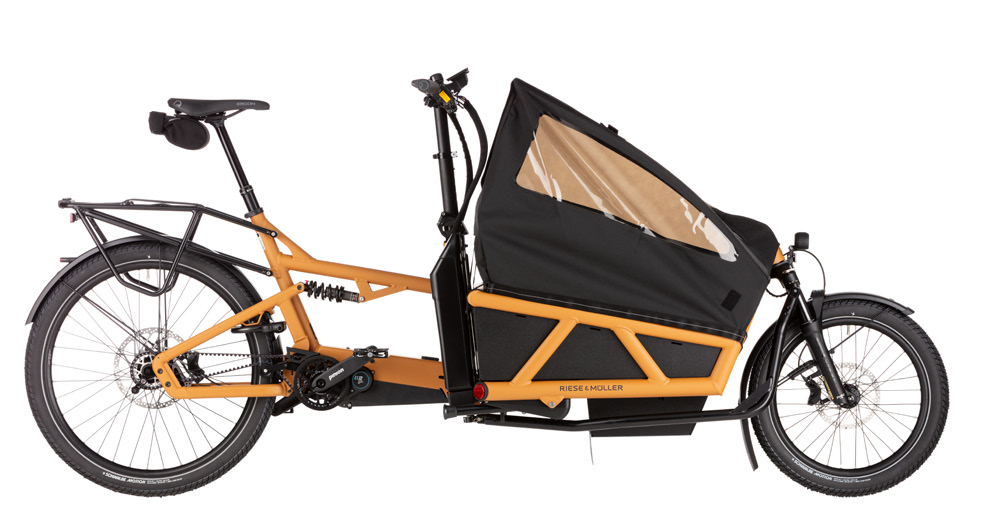

- Colours: arctic, peanut and tundra grey.
- Drive: Pinion MGU E1.12 or Pinion MGU E1.12 S depending on version.
- Battery: FIT CompactCore 800 as standard, with optional second battery configuration.
- Controls: FIT Remote Basic plus FIT Comfort Display.
- Suspension: SR Suntour SF23 Mobie34 CGO front and X-Fusion Glyde R rear.
- Drivetrain: Gates CDX belt drive.
- Brakes: TRP Tektro C2.3.
- Lighting: Supernova M99 MINI PRO 25 on pinion, Supernova M99 MINI PRO 45 on pinion HS.
- Connectivity: RX Chip as standard.
Customer-Facing Highlights
- Up to 200 kg permitted total weight
- Up to 80 kg cargo area load rating
- 20 inch front and 26 inch rear wheel format
- 80 mm front and rear suspension travel
- Approved for two-wheel trailers
- Available with family, cargo and performance-oriented accessory combinations
Technical Approvals And Availability
- Permissible total weight: 200 kg
- Max. rider weight: 125 kg
- Max. weight rating cargo area: 80 kg
- Carrier: 15 kg
- Handlebar bag / basket: no
- Child seat: no
- Single wheel trailer: no
- Two wheel trailer: yes
- Trailerbike: no
Availability
- Available to pre-order now
- Expected availability: December 2026
Geometry
The Load5 pinion uses a universal rider fit with two platform lengths. Desktop shows the full comparison table, while smaller screens switch to stacked cards.
| Measurement | Load5 60 | Load5 75 |
|---|---|---|
| Top tube length [cm] | 59-77 | 59-77 |
| Head tube angle [deg] | 70 | 70 |
| Seat tube angle [deg] | 68 | 68 |
| Trail [mm] | 54 | 54 |
| Wheelbase [cm] | 182.5 | 199 |
| Bottom bracket height [cm] | 30 | 30 |
| Stand-over height [cm] | 59 | 59 |
| Chainstay length [cm] | 46.5 | 46.5 |
| Overall length [cm] | 248 | 264.5 |
| Wheel size, front [in] | 20 | 20 |
| Wheel size, rear [in] | 26 | 26 |
| Front suspension travel [mm] | 80 | 80 |
| Rear suspension travel [mm] | 80 | 80 |
Load5 60
- Top tube length
- 59-77 cm
- Head tube angle
- 70 deg
- Seat tube angle
- 68 deg
- Trail
- 54 mm
- Wheelbase
- 182.5 cm
- Bottom bracket height
- 30 cm
- Stand-over height
- 59 cm
- Chainstay length
- 46.5 cm
- Overall length
- 248 cm
- Front wheel size
- 20 in
- Rear wheel size
- 26 in
- Front suspension travel
- 80 mm
- Rear suspension travel
- 80 mm
Load5 75
- Top tube length
- 59-77 cm
- Head tube angle
- 70 deg
- Seat tube angle
- 68 deg
- Trail
- 54 mm
- Wheelbase
- 199 cm
- Bottom bracket height
- 30 cm
- Stand-over height
- 59 cm
- Chainstay length
- 46.5 cm
- Overall length
- 264.5 cm
- Front wheel size
- 20 in
- Rear wheel size
- 26 in
- Front suspension travel
- 80 mm
- Rear suspension travel
- 80 mm
