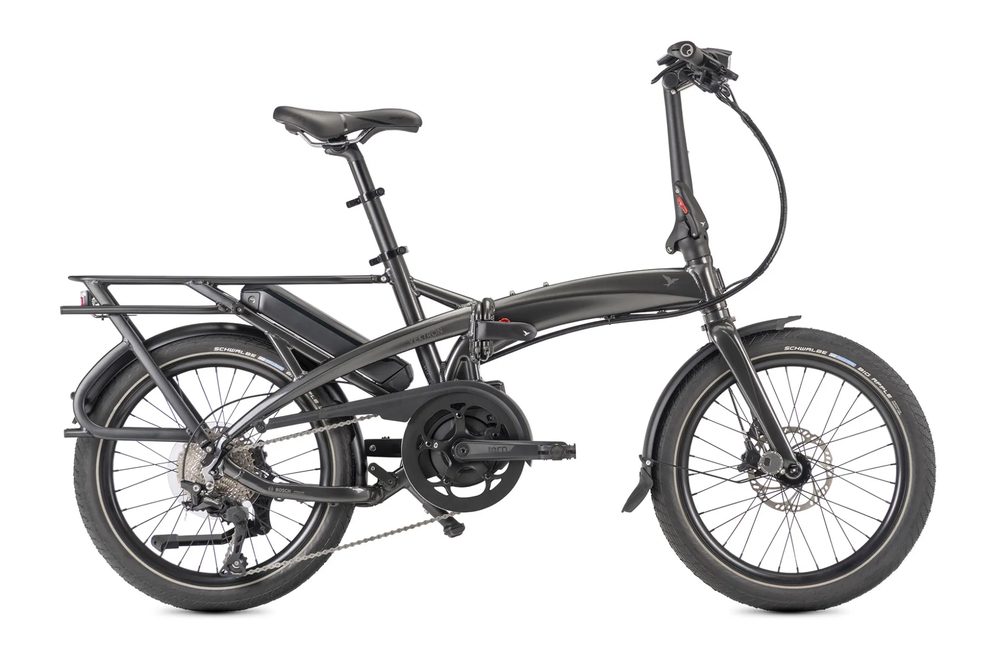

Vektron P10: Compact Folding eBike for Commuting
Ride It, Fold It, Go Further
What makes it a P10?
- Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support
- Intuvia 100 display and LED Remote offer clear info and easy control at your thumb
- PowerPack 400 Wh battery lets you ride up to 87 km (54 mi) on a single charge
- Shimano Deore 1 x 10-speed hub for smooth, efficient shifting across changing terrain
Vektron highlights
- Bosch Smart System delivers smart bike features like eBike Lock, ride customization, over-the-air updates, and navigation
- Add the optional ConnectModule to further enhance your experience with advanced functions such as Smart Alarm and GPS tracking
- Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes
- Folds down compact in 10 seconds to fit in cars, trains, and closets
- Stands upright and rolls when folded—easy to move, easy to store
- Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
- Hydraulic disc brakes for all-weather stopping power
- Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
- UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards
Technology
OCL+ Frame Joint
Robust folding technology
A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.
Physis 3D Handlepost
The new benchmark
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.
Andros Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Gallery
Click any image for full size · hover to pause
Specifications
General Info
- Generation
- Gen 4
- Color(s)
- Cosmic Black
- Speeds
- 1 x 10
- Weight
- 22.2 kg (48.9 lb)
- Gear Inches
- 30" - 97" (2.36 - 7.72 m)
- Frame Sizes
- One size
- Folding Size
- 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
- Folding Time
- 10 sec
- Distance: Seatpost to Handlebar
- 62 - 69 cm (24.4 - 27.2 in)
- Distance: Saddle to Pedal
- 67 - 110 cm (26.4 - 43.3 in)
- Suggested Rider Height
- 147 - 195 cm (57.9 - 76.8 in)
- Max Gross Vehicle Weight
- 125 kg (275.6 lb)
- Max Rider Weight
- 105 kg (231.5 lb)
Frame
- Frame
- Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
- Fork
- Tern Tarsus, 6061-Al, hydroformed
Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Headset
- Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar
- Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
- Grips/Bar Tape
- Ergon
- Saddle
- Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
- Seatpost
- Tern Telescope, 34.9/30.9 mm
- Seatpost Clamp
- Tern Collar
Brakes
- Front Brake
- Magura MT4, hydraulic disc
- Rear Brake
- Magura MT4, hydraulic disc
- Brake Levers
- Magura, hydraulic disc
- Brake Cable & Housing
- Magura, hydraulic disc
Wheels
- Front Hub
- Novatec, sealed cartridge bearing, disc
- Rear Hub
- Novatec, sealed cartridge bearing, disc
- Spokes & Nipples
- Stainless steel, double-butted
- Rims
- Kinetix Comp, for disc
- Tyres
- Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
- Shifter
- Shimano Deore, 1 x 10 spd
- Rear Derailleur
- Shimano Deore Shadow+
- Crankset
- Tern custom, forged 6061-AL crankarm
- Cassette/Freewheel
- Shimano 11-36T, 10 spd
- Bottom Bracket
- Motor integrated
- Chain
- 10 spd, DHT for eBike, GST corrosion resistant coating
- Pedals
- MKS EZY
- Shifter Cable & Housing
- Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
- Motor
- Bosch Performance, max speed 25 kph (EU)
- Battery
- Bosch PowerPack
- Display
- Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
- Range
- 400 Wh: 40-87 km (25-54 mi)
- Charger
- 100-240V, 2A
Bells & Whistles
- Chainguard
- SKS Chainblade
- Kickstand
- URSUS, rear mount
- Clip System
- Magnetix 3.0
- Luggage Socket
- Yes
- Front Light
- Tern Valo Direct, 190 lumens
- Rear Light
- Herrmans H-Trace, for eBike
- Fenders
- SplashGuard, stainless hardware
- Rack
- Atlas V Rack, integrated 8 point mounting, 27 kg capacity
Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
