Name: Tern GSD P00 Gen 3
Brand: Tern
Price: 5900 GBP
Availability: InStock

GSD P00: Smart Family eBike with Belt Drive

Still Getting Sh!t Done

What makes it a P00?

Bosch® Smart System with Purion 200 control unit enhances your riding experience with smart features like eBike lock, ride customization, navigation, and more!
Add the optional ConnectModule to unlock advanced functions such as Smart Alarm and GPS tracking
Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
Silent, smooth, and low-maintenance Gates Belt Drive
Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains

GSD highlights

Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation: Gen 3

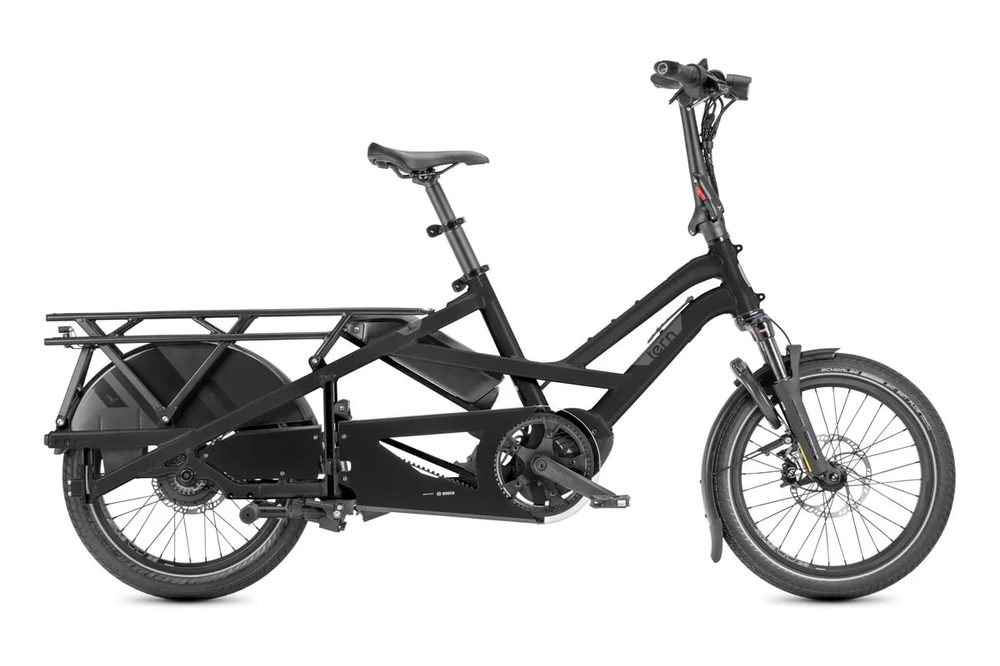

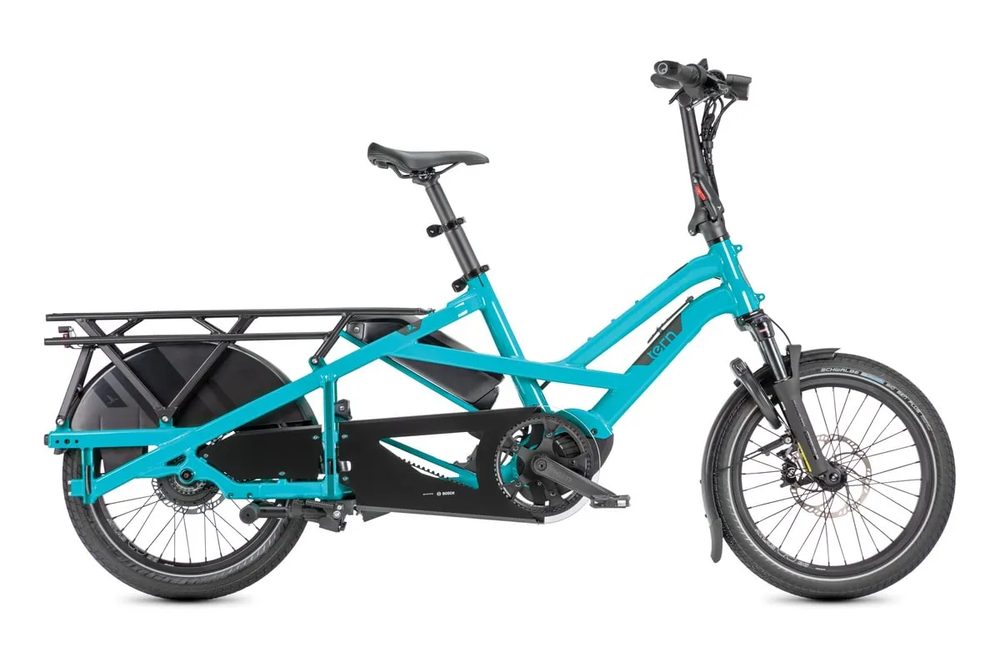

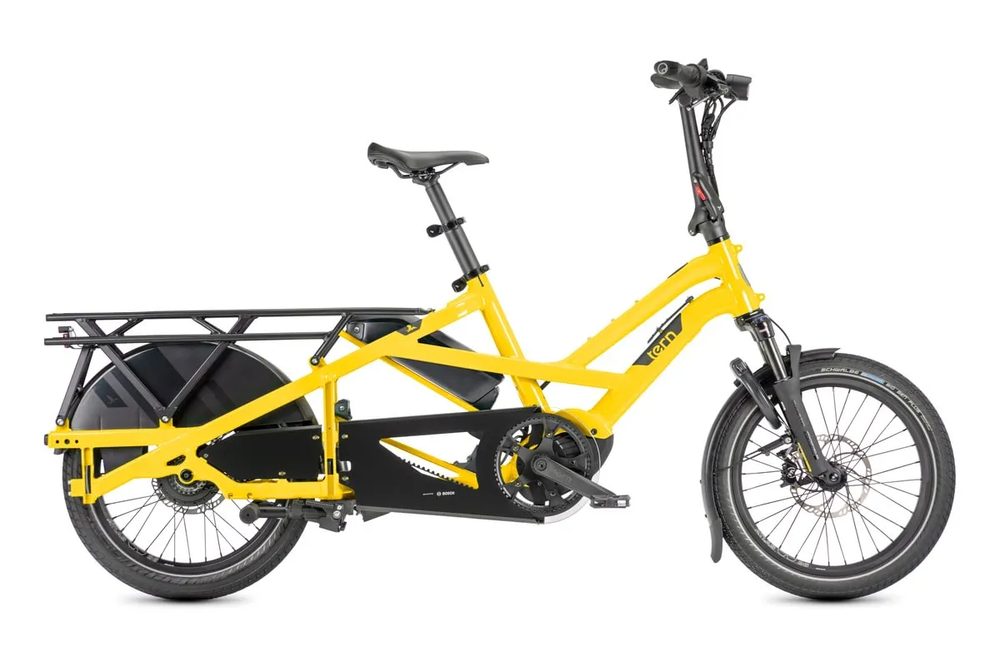

Color(s): Beetle Blue, School Bus Yellow, Satin Beige, Satin Black, Satin Midnight Blue
Weight: 36.3 kg (80 lb)
Gear Inches: 24"–90" (1.9–7.2 m)
Frame Sizes: One size
Bike Size: 191 × 68 × 116 cm (75.2 × 26.8 × 45.7 in)
Wheelbase: 135 cm (53.1 in)
Standover Height: 49 cm (19.3 in)
Folding Size: 182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
Folding Time: 5 seconds
Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height: 150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight: 210 kg (463 lb)
Max Load Weight: 210 kg (463 lb)
Max Rider Weight: 130 kg (286.6 lb)

Frame

Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg

Cockpit

Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo
Seatpost: Tern VLT (Very Large Telescope) with LightAction levers
Seatpost Clamp: Tern Collar

Brakes

Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing: Magura, hydraulic

Wheels

Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub: Enviolo Heavy Duty, 380% continuously variable range, Boost
Spokes & Nipples: Stainless steel
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres: F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex

Transmission

Shifter: Enviolo, Twist
Crankset: Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display: Bosch Purion 200, connectivity with Bosch eBike Flow IOS/Smartphone app
Range: 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger: 220V, 4A (EU)

Bells & Whistles

Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover
Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Ultra wide low beam
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard
Rack: Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
