Tern HSD P5I Gen 3

Name: Tern HSD P5I Gen 3
Brand: Tern
Price: 4400 GBP
Availability: InStock

£4,400.00

with FREE DELIVERY*

*UK Mainland only.

In Stock

(0) Write a Review

SKU:

UPC:: 810067166942

Current Stock:

Quantity:

Adding to cart… The item has been added

HSD P5i: Ultra-Smooth 1-Passenger Cargo eBike

MIGHTY BUT MINI

What makes it a P5i?

Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter
Silent, smooth, and virtually maintenance-free Gates Belt Drive
Bosch PowerPack 545 battery provides long range of up to 107 km (67 mi)

HSD Highlights

Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 80 kg (176 lb)
Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
Magura hydraulic disc brakes deliver precise and responsive stopping power
Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 190 kg) for proven cargo e-bike safety and reliability

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation: Gen 3

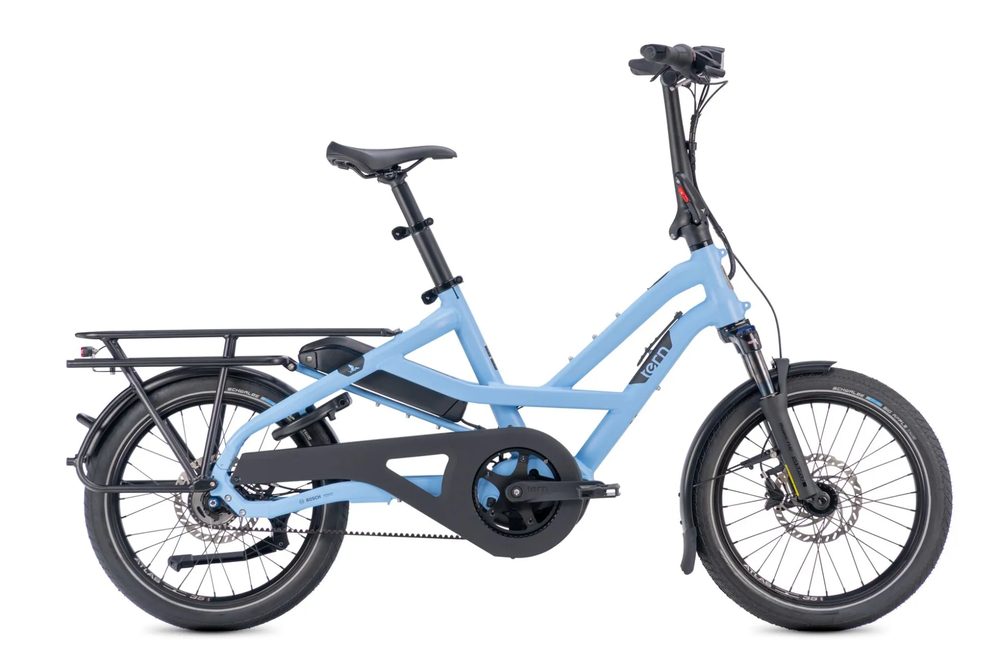

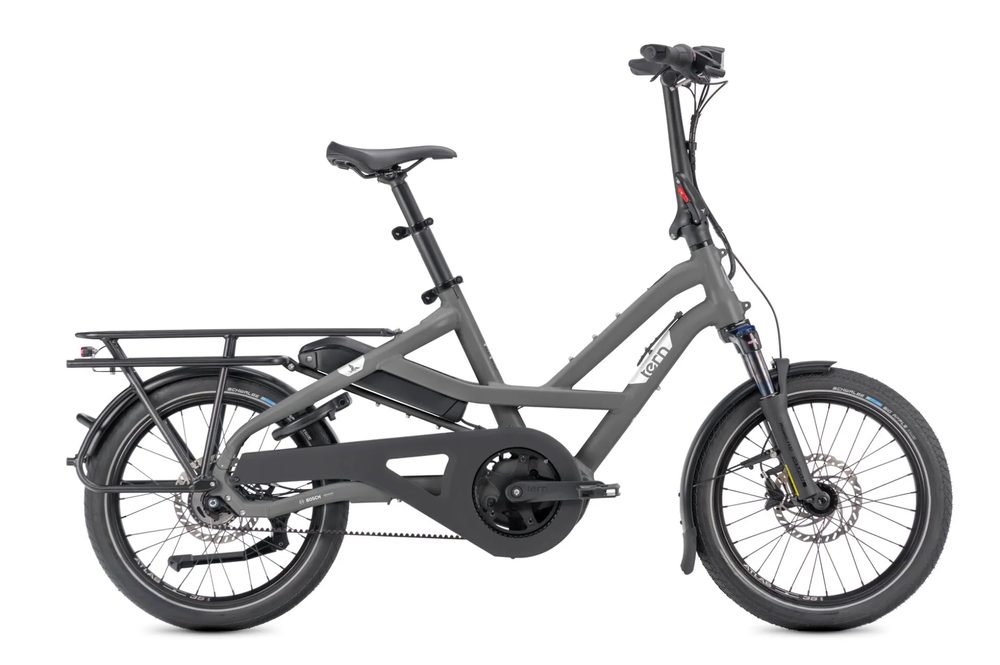

Color(s): Satin Basalt, Satin Sky Mist
Speeds: 1 x 5
Weight: 28.1 kg (61.9 lb)
Gear Inches: 38" - 99" (2.99 - 7.88 m)
Frame Sizes: One size
Bike Size: 174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Wheelbase: 119 cm (46.9 in)
Standover Height: 48.5 cm (19.1 in)
Folding Size: 166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
Folding Time: 5 seconds
Distance: Seatpost to Handlebar: 52 - 59 cm (20.5 - 23.2 in)
Distance: Saddle to Pedal: 68 - 101 cm (26.8 - 39.8 in)
Suggested Rider Height: 150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight: 190 kg (418.9 lb)
Max Rider Weight: 130 kg (286.6 lb)

Frame

Frame: Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork: Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg

Cockpit

Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern by Velo
Seatpost: Tern VLT 40/34.9mm, with LightAction levers
Seatpost Clamp: Tern Collar

Brakes

Front Brake: Magura, hydraulic disc, 180 mm rotor
Rear Brake: Magura, hydraulic disc, 180 mm rotor
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc

Wheels

Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Shimano Nexus 5
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission

Shifter: Shimano Nexus 5
Crankset: Tern HSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Shimano

E-System

Motor: Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 545
Display: Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 56-107 km (35-67 mi)
Charger: Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles

Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Tern Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans LED
Fenders: Aluminum, stainless hardware
Rack: Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock: AXA, keyed-alike with Bosch battery

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
