GSD P10: Our Most Affordable GSD Cargo eBike
Still Getting Sh!t Done
What makes it a P10?
- User-friendly Bosch® e-bike system with Purion display helps you stay informed and in control on the road
- Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
- Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Gallery
Click any image for full size · hover to pause
Specifications
General Info
- Generation
- Gen 3

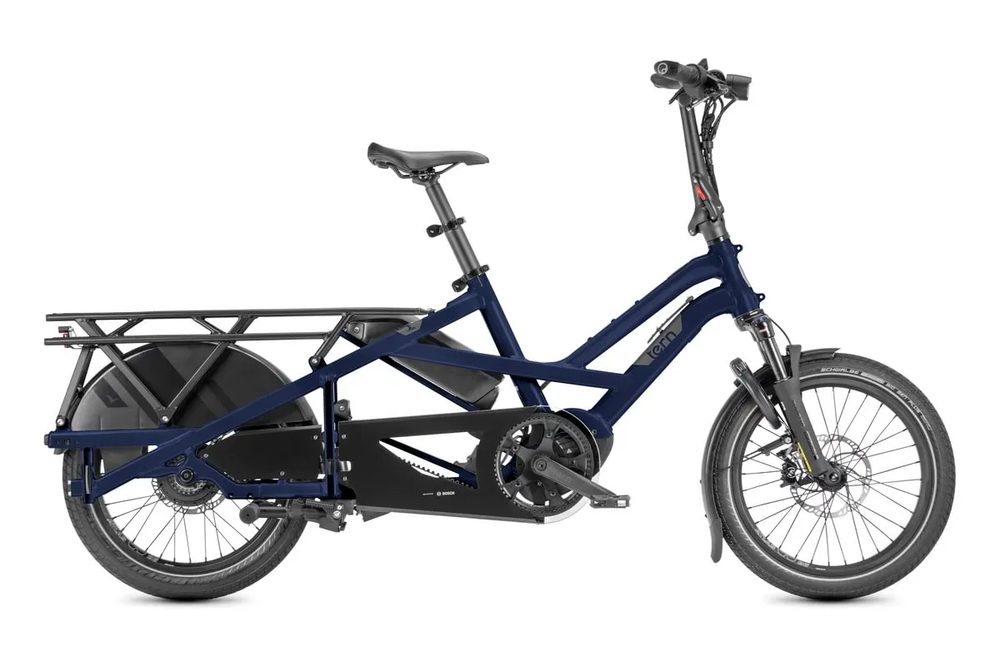

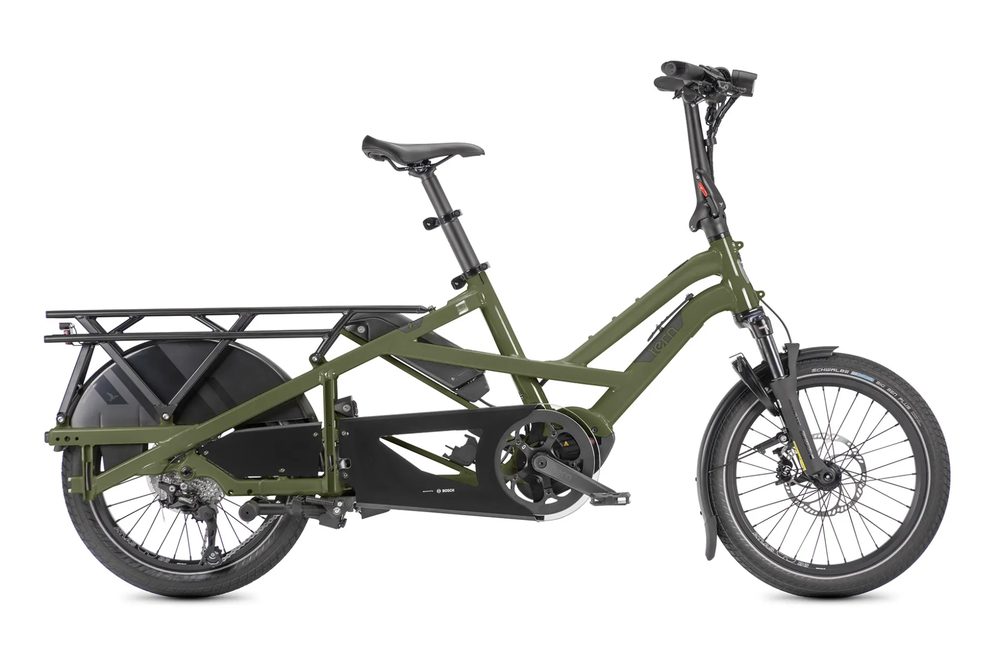

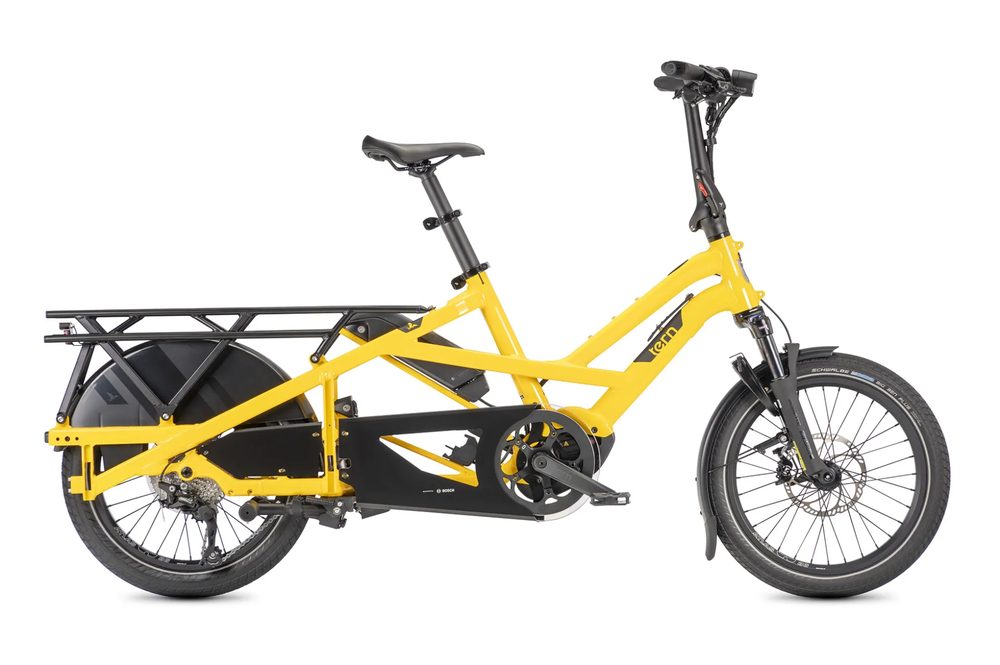

- Color(s)
- Olive Green, School Bus Yellow, Satin Midnight Blue
- Speeds
- 1 x 10
- Weight
- 34.64 kg (76.4 lb)
- Gear Inches
- 26" - 98" (2.04 - 7.80 m)
- Frame Sizes
- One size
- Bike Size
- 191 × 68 × 116 cm (75.2 × 26.8 × 45.7 in)
- Wheelbase
- 135 cm (53.1 in)
- Standover Height
- 49 cm (19.3 in)
- Folding Size
- 182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
- Folding Time
- 5 seconds
- Distance: Seatpost to Handlebar
- 49 - 59 cm (19.3 - 23.2 in)
- Distance: Saddle to Pedal
- 69 - 105 cm (27.2 - 41.3 in)
- Suggested Rider Height
- 150 - 200 cm (59.1 - 78.7 in)
- Max Gross Vehicle Weight
- 210 kg (463 lb)
- Max Load Weight
- 210 kg (463 lb)
- Max Rider Weight
- 130 kg (286.6 lb)
Frame
- Frame
- Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
- Fork
- Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Headset
- Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Handlebar
- Tern Sweep, 6061-AL, Tern Andros adapted
- Grips/Bar Tape
- Ergon
- Saddle
- Tern GSD by Velo
- Seatpost
- Tern VLT (Very Large Telescope) with LightAction levers
- Seatpost Clamp
- Tern Collar
Brakes
- Front Brake
- Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
- Rear Brake
- Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
- Brake Levers
- Magura MT5 e-stop, hydraulic, with brake light sensor
- Brake Cable & Housing
- Magura, hydraulic
Wheels
- Front Wheel
- Tern Atlas, heavy duty cargo wheel
- Rear Wheel
- Tern Atlas, heavy duty cargo wheel
- Front Hub
- Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
- Rear Hub
- Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
- Spokes & Nipples
- Stainless steel
- Rims
- Tern Atlas, ultra wide 36 mm, dual reinforced joint
- Tyres
- F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Transmission
- Shifter
- Shimano Deore, 1 x 10 spd
- Rear Derailleur
- Shimano Deore Shadow+
- Crankset
- Tern GSD, forged 6061-AL DH crankarm
- Cassette/Freewheel
- Shimano 11-42T, 10 spd
- Bottom Bracket
- Motor integrated
- Chain
- KMC 10 spd, for eBike, EPT corrosion resistant coating
- Pedals
- Urban with non-slip surface, sealed bearings
- Shifter Cable & Housing
- Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
- Motor
- Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery
- Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity
- Display
- Bosch Purion
- Range
- 500 Wh: 40-102 km (25-63 mi); 1000 Wh: 82-207 km (51-129 mi)
- Charger
- 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
- Bell
- Pitch Plus, brass
- Chainguard
- Tern GSD, full chain cover
- Kickstand
- Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
- Luggage Socket
- Combo Mount
- Front Light
- Ignis Headlight, Ultra wide low beam
- Rear Light
- RearStop Brake Light, Always on
- Fenders
- F: Aluminum R: GSD wheel guard
- Rack
- Atlas G, 100 kg (220 lb) capacity
- Frame Lock
- ABUS or AXA, keyed-alike with Bosch battery
Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
