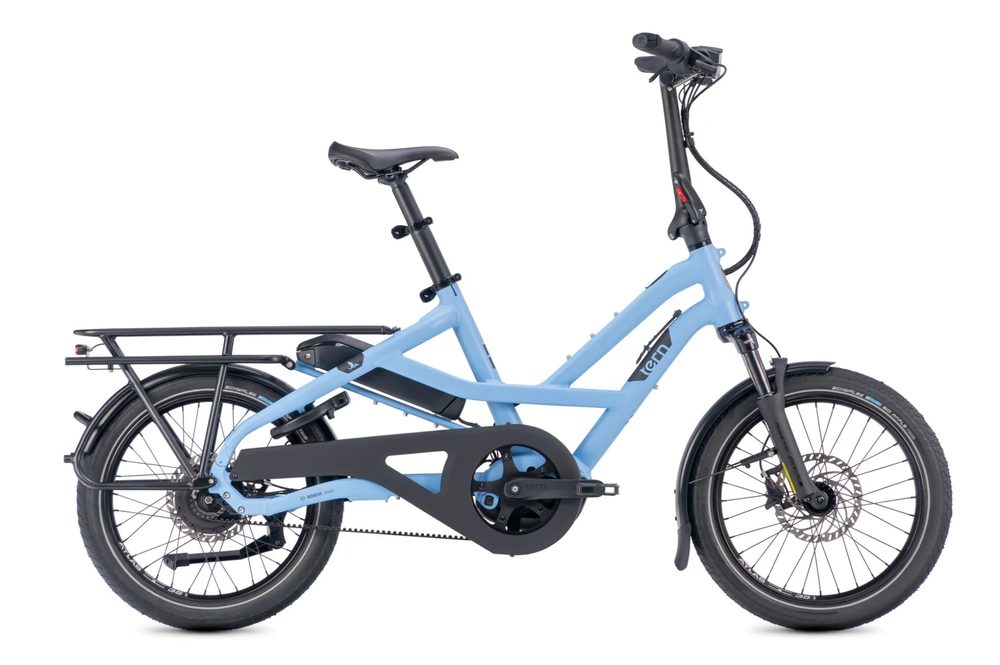

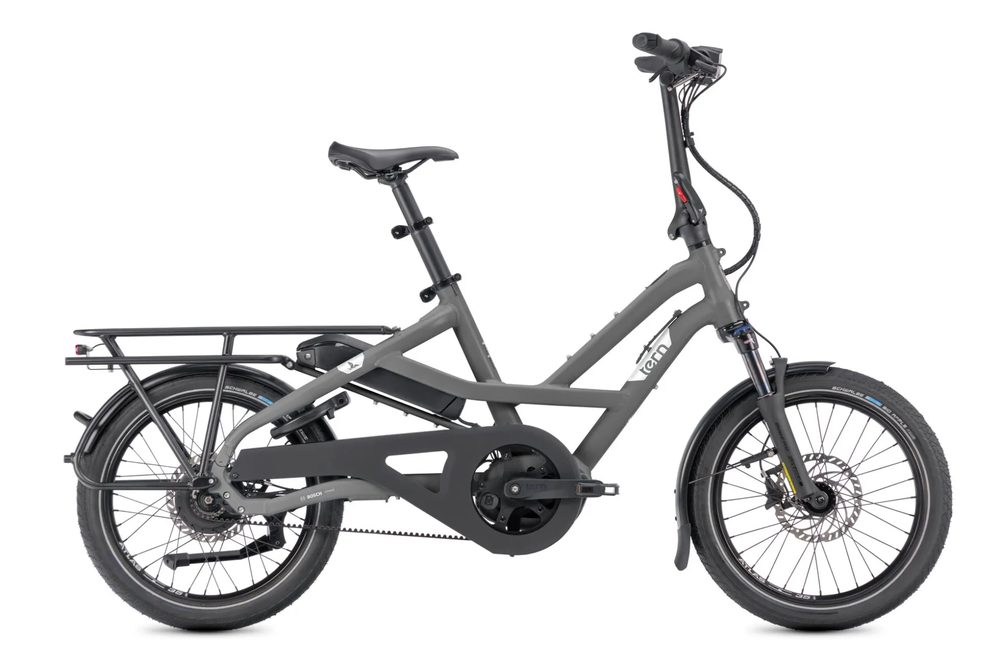

HSD P00: Smart Cargo eBike for Small Families
MIGHTY BUT MINI
What makes it a P00?
- Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
- Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more
- Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
- Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter
- Silent, smooth, and virtually maintenance-free Gates Belt Drive
- Bosch PowerPack 545 battery provides long range of up to 107 km (67 mi)
HSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 80 kg (176 lb)
- Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
- Magura hydraulic disc brakes deliver precise and responsive stopping power
- Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 190 kg) for proven cargo e-bike safety and reliability
Gallery
Click any image for full size · hover to pause
Specifications
General Info
- Generation
- Gen 3
- Color(s)
- Satin Basalt, Satin Honey, Satin Sky Mist
- Weight
- 28.9 kg (63.7 lb)
- Gear Inches
- 28" - 106" (2.23 - 8.47 m)
- Frame Sizes
- One size
- Bike Size
- 174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
- Wheelbase
- 119 cm (46.9 in)
- Standover Height
- 48.5 cm (19.1 in)
- Folding Size
- 166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
- Folding Time
- 5 seconds
- Distance: Seatpost to Handlebar
- 52 - 59 cm (20.5 - 23.2 in)
- Distance: Saddle to Pedal
- 68 - 101 cm (26.8 - 39.8 in)
- Suggested Rider Height
- 150 - 200 cm (59.1 - 78.7 in)
- Max Gross Vehicle Weight
- 190 kg (418.9 lb)
- Max Rider Weight
- 130 kg (286.6 lb)
Frame
- Frame
- Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
- Fork
- Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Cockpit
- Handlepost
- Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
- Stem
- Tern Andros, adjustable, forged construction, patented technology
- Headset
- Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Handlebar
- Tern Sweep, 6061-AL, Tern Andros adapted
- Grips/Bar Tape
- Ergon
- Saddle
- Tern by Velo
- Seatpost
- Tern VLT 40/34.9mm, with LightAction levers
- Seatpost Clamp
- Tern Collar
Brakes
- Front Brake
- Magura, hydraulic disc, 180 mm rotor
- Rear Brake
- Magura, hydraulic disc, 180 mm rotor
- Brake Levers
- Magura, hydraulic disc
- Brake Cable & Housing
- Magura, hydraulic disc
Wheels
- Front Wheel
- Tern Atlas H, cargo wheel
- Rear Wheel
- Tern Atlas H, cargo wheel
- Front Hub
- Novatec, Thru-axle, sealed bearings
- Rear Hub
- Enviolo Heavy Duty, 380% continuously variable range
- Spokes & Nipples
- Stainless steel
- Rims
- Tern Atlas H, cargo
- Tyres
- Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
- Shifter
- Enviolo, Twist
- Crankset
- Tern HSD, Gates CDX CNC machined beltring
- Cassette/Freewheel
- Gates CDX, precision CNC machined cog
- Bottom Bracket
- Motor integrated
- Chain
- Gates Carbon Drive CDX belt
- Pedals
- Urban with non-slip surface, sealed bearings
- Shifter Cable & Housing
- Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
- Motor
- Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h (EU); max speed 20 mph (US)
- Battery
- Bosch PowerPack 545
- Display
- Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
- Range
- 545 Wh: 56-107 km (35-67 mi)
- Charger
- Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
- Bell
- Pitch Plus, brass
- Chainguard
- Tern Custom, full chain cover
- Kickstand
- Ursus, rear mount
- Luggage Socket
- Tern Combo Mount
- Front Light
- Tern Valo Direct, 190 lumens
- Rear Light
- Herrmans LED
- Fenders
- Aluminum, stainless hardware
- Rack
- Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
- Frame Lock
- AXA, keyed-alike with Bosch battery
Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
