Tern GSD S10 Gen 3

Name: Tern GSD S10 Gen 3
Brand: Tern
Price: 5900 GBP
Availability: InStock

£5,900.00

with FREE DELIVERY*

*UK Mainland only.

In Stock

(0) Write a Review

SKU:

UPC:: 810067163644

Current Stock:

Quantity:

Adding to cart… The item has been added

GSD S10: Smart Electric Cargo Bike for Families

Still Getting Sh!t Done

What makes it an S10?

Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
Bosch Anti-Lock Braking System enables safer, more efficient braking
Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting

GSD highlights

Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation: Gen 3

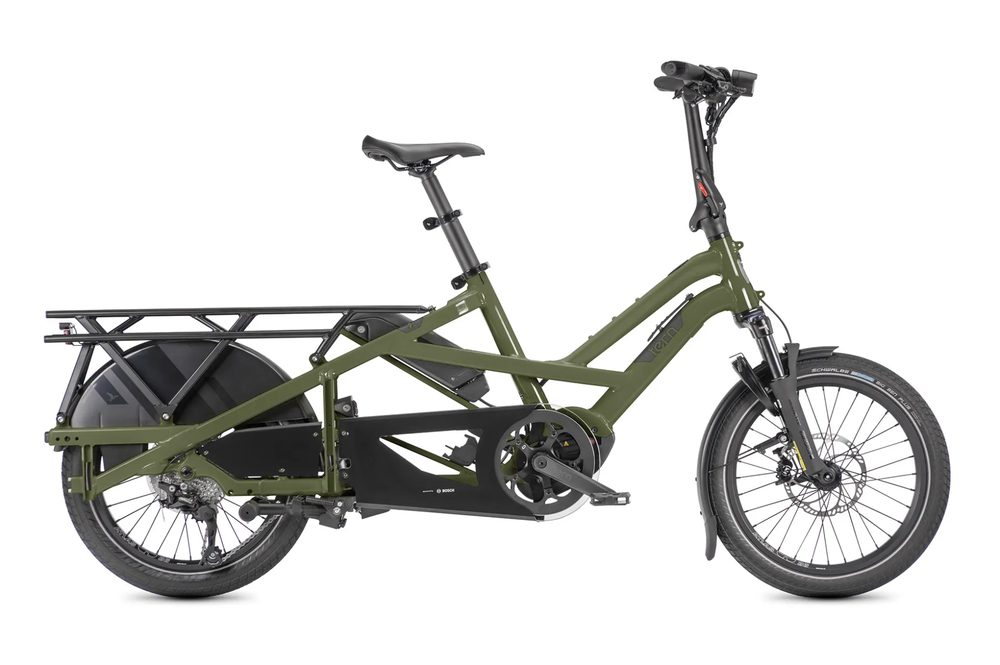

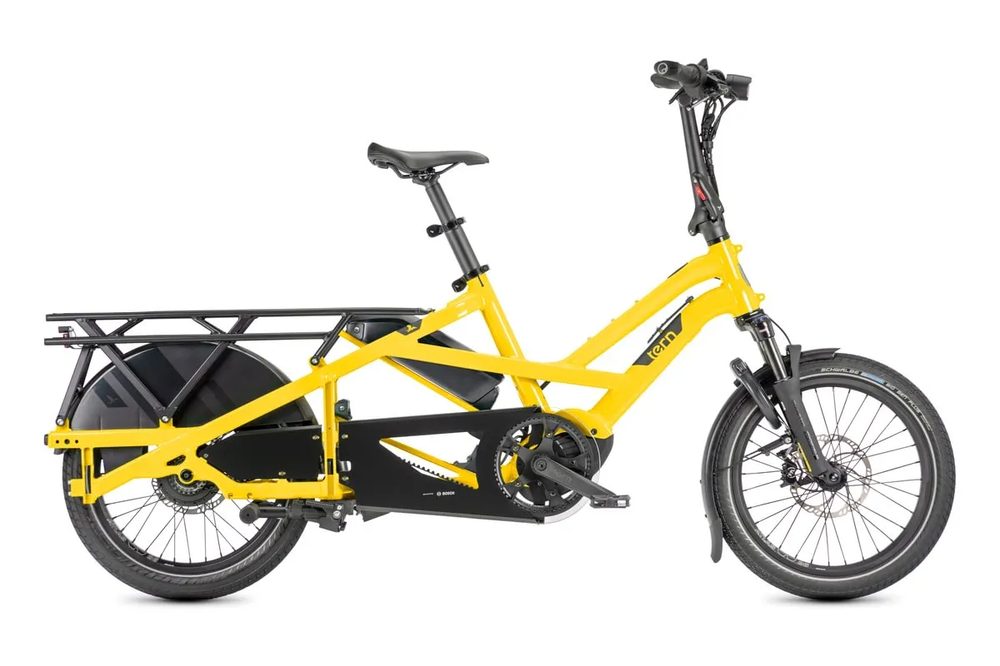

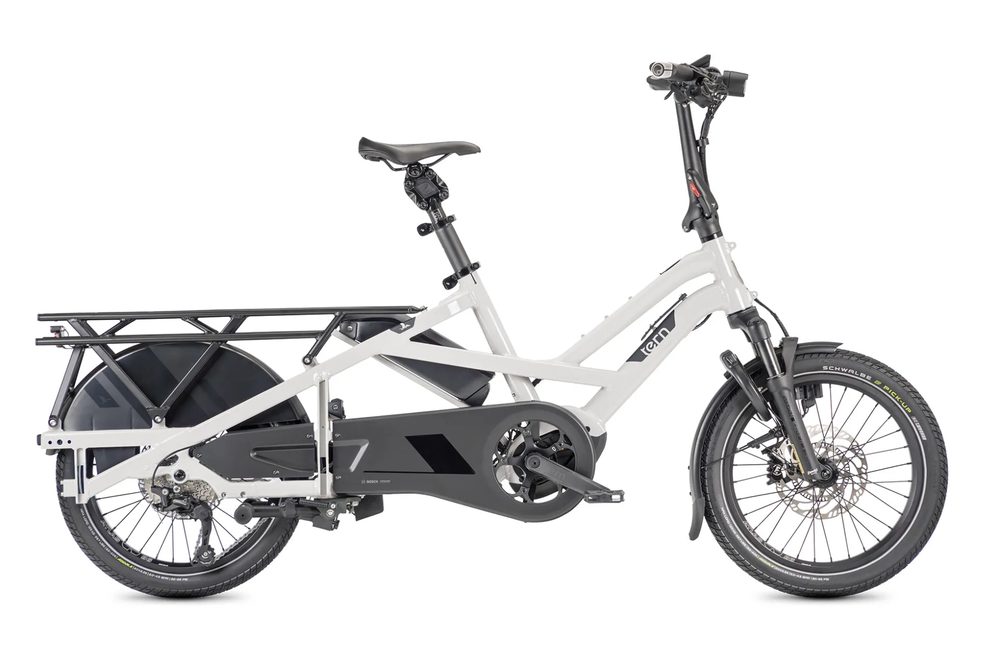

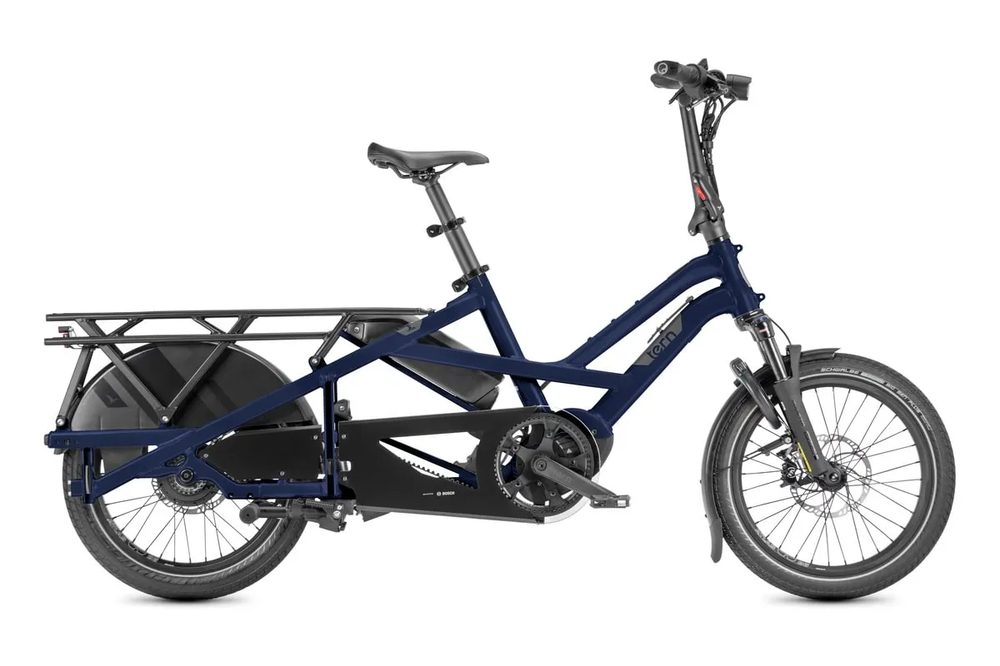

Color(s): Olive Green, Pearl White, School Bus Yellow, Satin Midnight Blue
Speeds: 1 x 10
Weight: 37.32 kg (82.3 lb)
Gear Inches: 26" - 98" (2.04 - 7.80 m)
Frame Sizes: One size
Bike Size: 192 × 68 × 118 cm (75.6 × 26.8 × 46.5 in)
Wheelbase: 136 cm (53.5 in)
Standover Height: 49 cm (19.3 in)
Folding Size: 185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time: 5 seconds
Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height: 153 - 200 cm (60.2 - 78.7 in)
Max Gross Vehicle Weight: 210 kg (463 lb)
Max Load Weight: 210 kg (463 lb)
Max Rider Weight: 130 kg (286.6 lb)

Frame

Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg

Cockpit

Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo
Seatpost: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp: Tern Collar

Brakes

Front Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers: Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing: Magura ABS, hydraulic

Wheels

Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples: Stainless steel
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex

Transmission

Shifter: Shimano Deore, 1 x 10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern GSD, forged 6061-AL DH crankarm
Cassette/Freewheel: Shimano 11-42T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range: 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System: Bosch Anti-Lock Braking System, Gen 2

Bells & Whistles

Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover
Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard
Rack: Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
On-board Charging: USB-C, 5V/2.4A, 12W max

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
