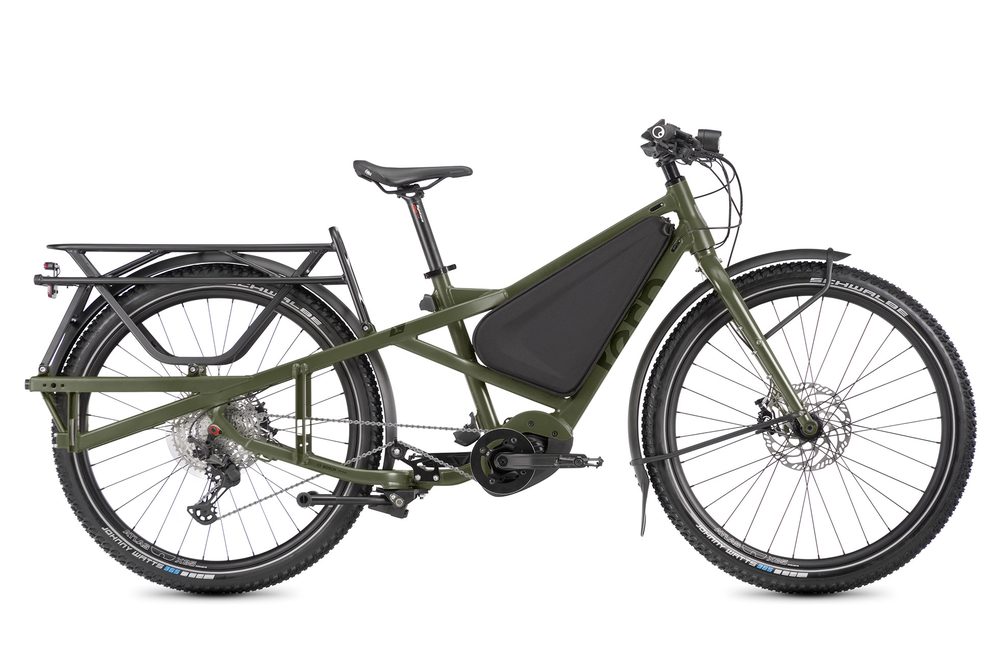

Tern OROX S12 Gen 1

Name: Tern OROX S12 Gen 1
Brand: Tern
Price: 5900 GBP
Availability: InStock

£5,900.00

with FREE DELIVERY*

*UK Mainland only.

In Stock

(0) Write a Review

SKU:

UPC:: 810067161732

Current Stock:

Quantity:

Adding to cart… The item has been added

Orox S12: Family-Friendly Adventure E-Cargo Bike

Explore New Ground

What makes it an S12?

Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
29" Schwalbe Johnny Watts all-terrain tires

Orox highlights

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation: Gen 1
Color(s): Satin Pine
Speeds: 1 x 12
Weight: M: 34.4 kg (75.8 lb)
Gear Inches: 18" - 95" (1.48 - 7.54 m)
Frame Sizes: M, L
Bike Size: M: 214 × 82 × 107.5 cm (84.3 × 32.3 × 42.3 in) ; L: 218 × 82 × 109.5 cm (85.8 × 32.3 × 43.1 in)
Wheelbase: M: 134 cm (52.8 in) ; L: 137 cm (53.9 in)
Seat Tube Length: M: 46 cm (18.1 in) ; L: 50.5 cm (19.9 in)
Top Tube Length: M: 61 cm (24 in) ; L: 64.5 cm (25.4 in)
Stack Height: M: 62.5 cm (24.6 in) ; L: 65 cm (25.6 in)
Standover Height: 70 cm (27.6 in)
Distance: Seatpost to Handlebar: M: 61 - 66 cm (24 - 26 in) ; L: 67 - 73 cm (26.4 - 28.7 in)
Distance: Saddle to Pedal: M: 71 - 99 cm (28 - 39 in) ; L: 76.5 - 104.5 cm (30.1 - 41.1 in)
Suggested Rider Height: M: 155 - 185 cm (61 - 72.8 in) ; L: 165 - 195 cm (65 - 76.8 in)
Max Gross Vehicle Weight: 210 kg (463 lb)
Max Rider Weight: 130 kg (286.6 lb)

Frame

Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork: Atlas X, butted chromoly steel, EFBE tested and approved

Cockpit

Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset: FSA, 1.5", angular contact bearings
Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved
Grips/Bar Tape: Ergon
Saddle: Ergon SM, E-Mountain Sport, CrMo Rail
Seatpost: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Seatpost Clamp: Tern Collar

Brakes

Front Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Rear Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers: Magura MT5, hydraulic
Brake Cable & Housing: Magura, hydraulic

Wheels

Front Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"
Rear Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"
Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples: Stainless steel
Rims: Tern Atlas X, custom doublewall construction
Tyres: Schwalbe Johnny Watts 29" x 2.6"

Transmission

Shifter: Shimano Deore, 1 x 12 spd
Rear Derailleur: Shimano Deore XT Shadow+
Crankset: Tern Orox custom
Cassette/Freewheel: Shimano 10-51T, 12 spd
Bottom Bracket: Motor integrated
Chain: KMC 12 spd, for eBike, EPT corrosion resistant coating
Pedals: MTB, non-slip
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
Battery: 725 Wh or 800 Wh, Bosch Dual Battery pack ready
Display: Bosch Kiox 300 w/ LED remote, electronic bike lock
Range: 725 Wh: 84 - 146 km (52 - 91 mi); 800 Wh: 93 - 161 km (58 -100 mi); 1450 Wh: 168 - 292 km (104 - 181 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

Bells & Whistles

Bell: Pitch Plus, brass
Tool: Thru-axle lever, 4/5 mm, Torx 2.5 mm
Chainguard: Custom Bash Guard
Paint Protection: ToughShield film on top and downtube, self-healing
Kickstand: Atlas Kickstand XL Cargo ready
Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light: LED w/ G-Sensed Brake Light
Fenders: Aluminum, heavy duty construction, oversize stays, 29"
Rack: Atlas X, 100 kg (220 lb) capacity

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
