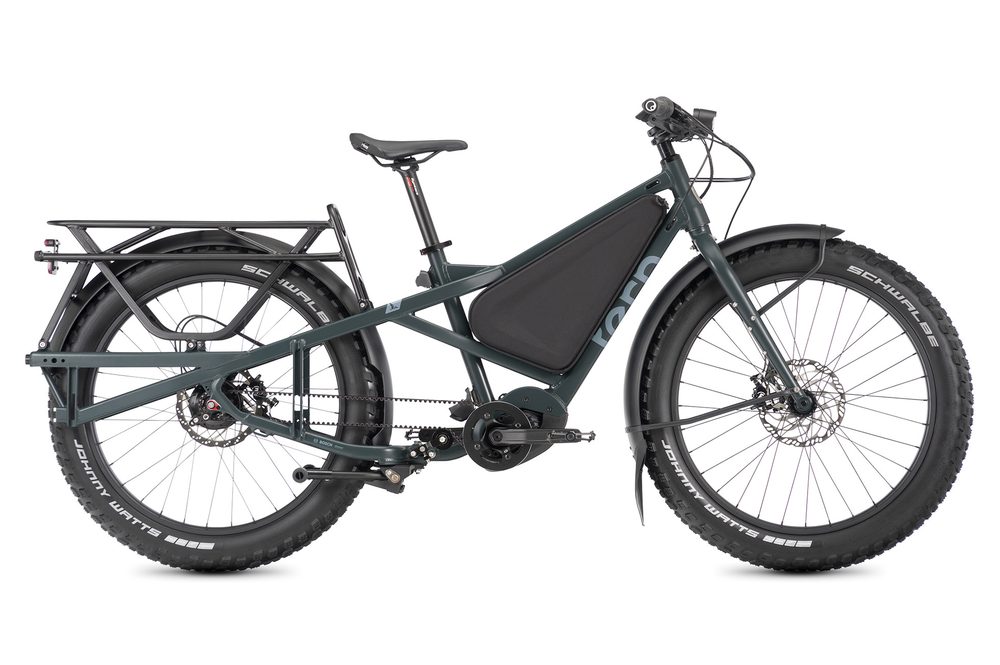

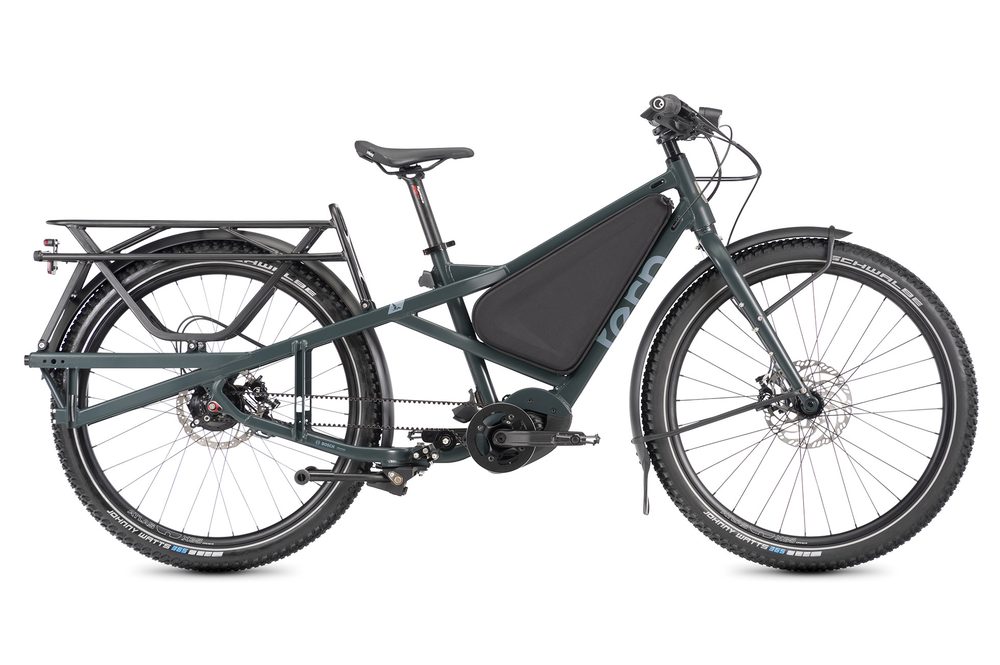

Tern OROX R14 Gen 1 Granite/Grey

Tern

Tern OROX R14 Gen 1

£8,100.00

with FREE DELIVERY*

*UK Mainland only.

In Stock
(0) Write a Review
UPC:
810067161640
Selected Frame colour is
Adding to cart… The item has been added
Orox R14: Our Best Adventure E-Cargo Bike

Orox R14: Our Best Adventure E-Cargo Bike

Explore New Ground

What makes it an R14?

  • Highly-durable and virtually maintenance-free Rohloff Speedhub
  • Silent, smooth, and rust & grease-free Gates Belt Drive
  • Custom 29" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions

Orox highlights

  • Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
  • Dual-battery system draws from up to two batteries for ultra-long range
  • Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
  • Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
  • Powerful and responsive Magura 4-piston hydraulic brakes
  • EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
  • Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation
Gen 1
Color(s)
Satin Granite
Speeds
1 x 14
Weight
M: 34.9 kg (76.9 lb)
Gear Inches
18" - 96" (1.45 - 7.64 m)
Frame Sizes
M, L
Bike Size
M: 214 × 82 × 107.5 cm (84.3 × 32.3 × 42.3 in) ; L: 218 × 82 × 109.5 cm (85.8 × 32.3 × 43.1 in)
Wheelbase
M: 134 cm (52.8 in) ; L: 137 cm (53.9 in)
Seat Tube Length
M: 460 cm (181.1 in) ; L: 50.5 cm (19.9 in)
Top Tube Length
M: 61 cm (24 in) ; L: 64.5 cm (25.4 in)
Stack Height
M: 62.5 cm (24.6 in) ; L: 65 cm (25.6 in)
Standover Height
70 cm (27.6 in)
Distance: Seatpost to Handlebar
M: 61 - 66 cm (24 - 26 in) ; L: 67 - 73 cm (26.4 - 28.7 in)
Distance: Saddle to Pedal
M: 71 - 99 cm (28 - 39 in) ; L: 76.5 - 104.5 cm (30.1 - 41.1 in)
Suggested Rider Height
M: 155 - 185 cm (61 - 72.8 in) ; L: 165 - 195 cm (65 - 76.8 in)
Max Gross Vehicle Weight
210 kg (463 lb)
Max Rider Weight
130 kg (286.6 lb)

Frame

Frame
Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork
Atlas X, butted chromoly steel, EFBE tested and approved

Cockpit

Stem
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset
FSA, 1.5", angular contact bearings
Handlebar
Level Nine, AL-7050, 800 mm, riser, eMTB approved
Grips/Bar Tape
Ergon
Saddle
Ergon SM, E-Mountain Sport, CrMo Rail
Seatpost
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Seatpost Clamp
Tern Collar

Brakes

Front Brake
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Rear Brake
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers
Magura MT5, hydraulic
Brake Cable & Housing
Magura, hydraulic

Wheels

Front Wheel
Tern Atlas X, ultra-heavy duty cargo construction, 29"
Rear Wheel
Tern Atlas X, ultra-heavy duty cargo construction, 29"
Front Hub
Tern Atlas X, CNC body, disc cooling fins, 150 Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear Hub
Rohloff, 526% range, 197 OLD
Spokes & Nipples
Stainless steel
Rims
Tern Atlas X, custom doublewall construction
Tyres
Schwalbe Johnny Watts 29" x 2.6"

Transmission

Shifter
Rohloff, Twist
Crankset
Tern Orox custom, Gates CDX CNC machined beltring
Cassette/Freewheel
Gates CDX, precision CNC machined cog
Bottom Bracket
Motor integrated
Chain
Gates Carbon Drive CDX belt
Pedals
MTB, non-slip
Shifter Cable & Housing
Rohloff

E-System

Motor
Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
Battery

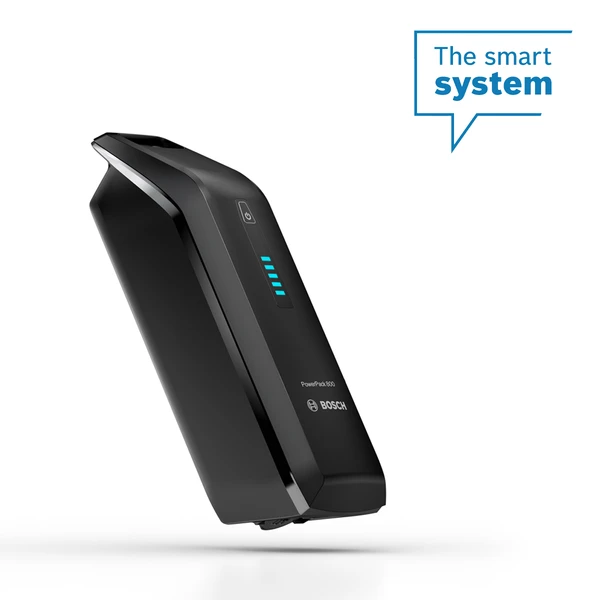

800 Wh, Bosch Dual Battery pack ready
Display
Bosch Kiox 300 w/ LED remote, electronic bike lock
Range
800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
Charger
220V, 4A (EU); 100-240V, 4A (US)
Connect Module
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

Bells & Whistles

Bell
Pitch Plus, brass
Tool
Thru-axle lever, 4/5 mm, Torx 2.5 mm
Chainguard
Custom Bash Guard
Paint Protection
ToughShield film on top and downtube, self-healing
Kickstand
Atlas Kickstand XL Cargo ready
Front Light
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light
LED w/ G-Sensed Brake Light
Fenders
Aluminum, heavy duty construction, oversize stays, 29"
Rack
Atlas X, 100 kg (220 lb) capacity

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
