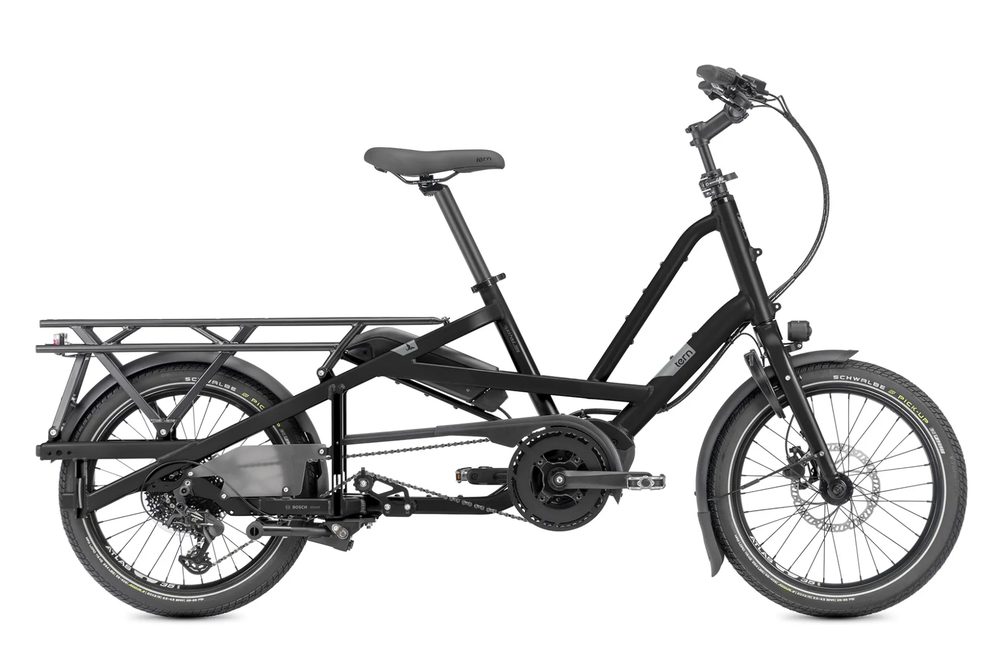

Tern Quick HAUL LONG D9 Satin Black/Grey

Tern

Tern Quick HAUL LONG D9

£3,500.00

with FREE DELIVERY*

*UK Mainland only.

In Stock
(0) Write a Review
UPC:
810067164641
Selected Frame colour is
Adding to cart… The item has been added
Quick Haul Long D9: Tern Bosch eBike for Families

Quick Haul Long D9: Tern Bosch eBike for Families

Life is Better by Bike

Highlights

  • Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
  • Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
  • Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
  • Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
  • Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
  • Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
  • Create customized setups using our wide range of kid & cargo-carrying accessories
  • Adjusts without tools to fit riders 155 - 190 cm (5'1" - 6'3"), weighing up to 120 kg (265 lb)
  • Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation
Gen 1
Color(s)
Satin Black, Satin Ice Grey, Satin Traffic Red
Speeds
1 x 9
Weight
29.3 kg (64.6 lb)
Gear Inches
23" - 89" (1.87 - 7.13 m)
Frame Sizes
One size
Bike Size
187 × 70 × 102.5 cm (73.6 × 27.6 × 40.4 in)
Wheelbase
130 cm (51.2 in)
Standover Height
48 cm (18.9 in)
Distance: Seatpost to Handlebar
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal
76 - 99 cm (29.9 - 39 in)
Suggested Rider Height
155 - 190 cm (61 - 74.8 in)
Max Gross Vehicle Weight
190 kg (418.9 lb)
Max Rider Weight
120 kg (264.6 lb)

Frame

Frame
Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork
Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

Cockpit

Stem
Speedlifter, adjustable, 3D forged stem, 31.8
Headset
TH, cartridge bearings
Handlebar
Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape
Velo ergonomic, lock-on
Saddle
Velo Comfort
Seatpost
34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp
Tern Collar

Brakes

Front Brake
Tektro hydraulic disc
Rear Brake
Tektro hydraulic disc
Brake Levers
Tektro hydraulic disc

Wheels

Front Hub
Disc, aluminum
Rear Hub
9 spd, disc, aluminum, Boost
Spokes & Nipples
Stainless steel
Rims
Tern Atlas H, cargo
Tyres
Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex

Transmission

Shifter
Tektro, 1 x 9 spd, trigger
Rear Derailleur
Tektro custom for Tern, 1 x 9 spd
Crankset
Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel
Tektro 11-42T, 9 spd
Bottom Bracket
Motor integrated
Chain
KMC for eBike, 9 spd
Pedals
Urban with non-slip surface
Shifter Cable & Housing
SP

E-System

Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400
Display
Bosch Purion, 4 mode selectable, walk assist
Range
400 Wh: 42-85 km (26-53 mi)
Charger
220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles

Bell
Aluminum
Chainguard
SKS Chainblade
Kickstand
Atlas Kickstand, for cargo
Luggage Socket
Combo Mount
Front Light
90 lux, StVZO approved
Rear Light
Herrmans
Fenders
SplashGuard, stainless hardware
Rack
Atlas L, 90 kg (198 lb) capacity
Frame Lock
ABUS or AXA, keyed-alike with Bosch battery

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
