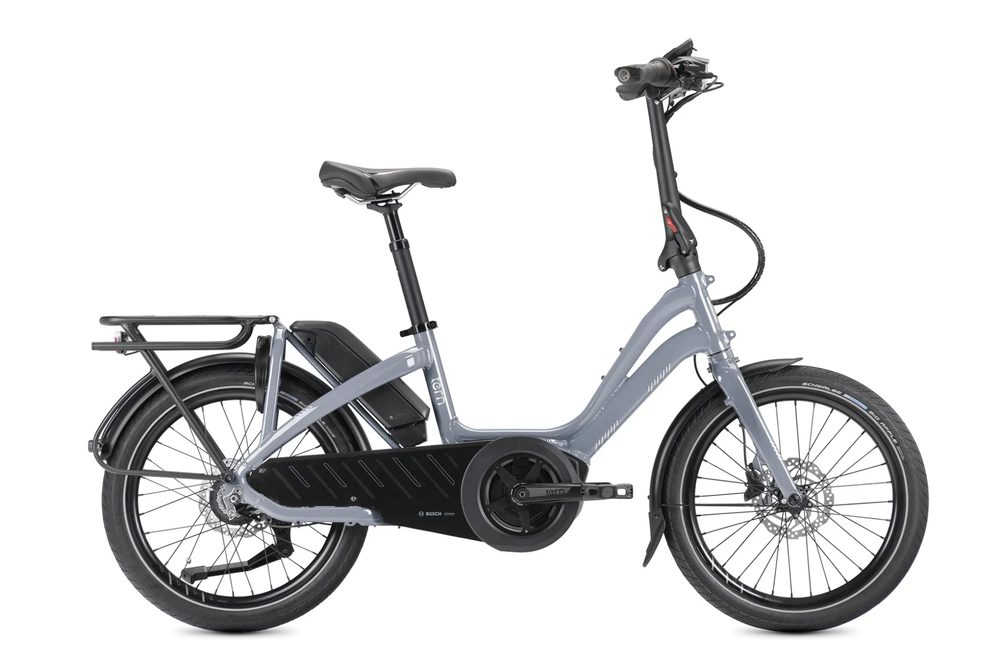

Tern NBD P8I Gloss Metallic Silver Blue

Tern

Tern NBD P8I

£3,000.00

with FREE DELIVERY*

*UK Mainland only.

In Stock
(0) Write a Review
UPC:
812741029901
Selected Frame colour is
Adding to cart… The item has been added
NBD P8i: Easy-to-ride e-bike for beginners

NBD P8i: Easy-to-ride e-bike for beginners

Smiles for Miles

What Makes it a P8i?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • Bosch PowerPack 400 powers long trips, commutes, and journeys
  • Shimano® Nexus  8-speed internal hub
  • Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast

NBD Highlights

  • Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
  • Ultra-low centre of gravity improves balancing and manoeuvring when riding with kids through parks and narrow streets
  • Fits riders 147 - 190 cm (4'10" - 6'3")
  • Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
  • Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight

Gallery

Click any image for full size · hover to pause

Specifications

General Info

Generation
Gen 1
Color(s)
NBD - Silver Blue
Speeds
1 x 8
Weight
23.7 kg (52.2 lb)
Gear Inches
30" - 91" (2.37 - 7.26 m)
Frame Sizes
One size
Folding Size
38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
Folding Time
5 sec
Distance: Seatpost to Handlebar
45 - 52 cm (17.7 - 20.5 in)
Distance: Saddle to Pedal
70 - 100 cm (27.6 - 39.4 in)
Suggested Rider Height
147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight
140 kg (308.6 lb)
Max Rider Weight
120 kg (264.6 lb)

Frame

Frame
Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
Fork
Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg

Cockpit

Handlepost
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
Stem
Tern Andros, adjustable, forged construction, patented technology
Headset
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape
Ergon
Saddle
Tern Upright by Velo
Seatpost
Tern RideEasy Suspension, 34.9 mm
Seatpost Clamp
Tern Collar

Brakes

Front Brake
Shimano, hydraulic disc
Rear Brake
Shimano, hydraulic disc
Brake Levers
Shimano, hydraulic disc
Brake Cable & Housing
Shimano, hydraulic disc

Wheels

Front Hub
Shimano disc
Rear Hub
Shimano Nexus 8
Spokes & Nipples
Stainless steel
Rims
Kinetix Comp, for disc
Tyres
Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission

Shifter
Shimano 8 spd.
Crankset
Tern NBD custom, forged 6061-AL crankarm
Cassette/Freewheel
16T
Chain
KMC for eBike, EPT corrosion resistant coating
Pedals
MKS Platform, Tern custom design
Shifter Cable & Housing
Shimano

E-System

Motor
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400
Display
Bosch Intuvia, 4 mode selectable, walk assist
Range
54 -108 km (34-67 mi)
Charger
Bosch Standard Charger

Bells & Whistles

Bell
Aluminum
Chainguard
Tern Custom, full chain cover
Kickstand
Ursus, rear mount
Luggage Socket
Combo Mount
Front Light
Tern Valo Direct, 190 lumens
Rear Light
Herrmans
Fenders
SplashGuard, stainless hardware
Rack
Gaia Rack, 27 kg capacity, Vertical Parking
Frame Lock
ABUS, keyed-alike with Bosch battery

Please note: These are the manufacturer’s standard specifications for this model. Quoted weight and folded dimensions may not include racks, mudguards or other accessories. Specification for UK-supplied bikes can differ slightly from other markets. We do our best to keep the details here accurate, but Tern may change components from time to time and updates on this page can lag briefly. Component changes may be made without prior notice, so the bike you receive may differ in small ways from the information listed here.
